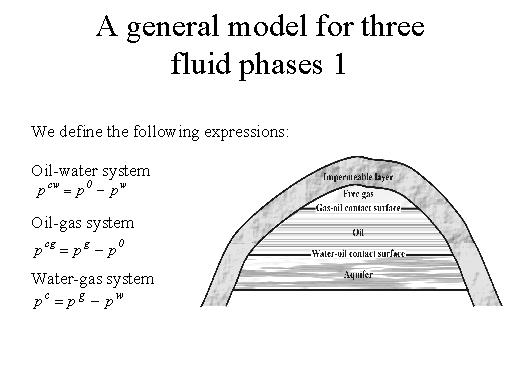

For oil and hydro-carbon withdrawal from the underground, we see here
typical case of reservoir.
We may have an aquifer contact with the oil and then the oil in contact
with the free gas. We have to define a few terms for the pressure, which
means capillary pressure for the oil-water system, then capillary pressure
for the oil-gas system and capillary pressure for the water-gas system.
Usually we have cup above the reservoir, which is an impermeable layer.
|
|
