In the central part of the box you can see the f.e.m. system in the element's dominion. By positioning the mouse on the sub-matrices that compose the system and that are represented with a blue colour, a sign appears (show) on the pointer.
| In the window

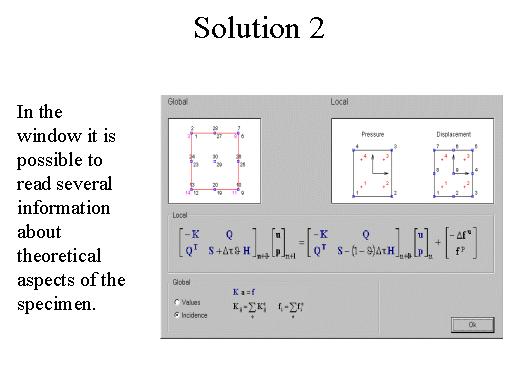

it is possible to read, besides the element's number, several information
about theoretical aspects of the specimen. Here is represented the element
in the global reference system (Global), with respective numeration,
and in the local one (Local). It is shown the element about both
the displacements field and the pressure's one. The fields can have a different
integration order. In the central part of the box you can see the f.e.m. system in the element's dominion. By positioning the mouse on the sub-matrices that compose the system and that are represented with a blue colour, a sign appears (show) on the pointer. |
|
