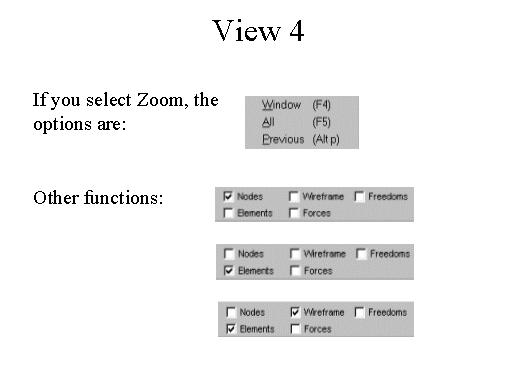

Zoom
Accessible: Menu: ® View ® Zoom
Description: It activates the commands available for view management.
The available options are: Window, All, Previous.
Zoom Window
Accessible: Menu: ® View ® Zoom Window
Quick choice: F4
Fix Toolbar: Windows
Description: It executes a zoom of the part in the rectangle dimensioned with the mouse.
Zoom All
Accessible: Toolbar: Alt
Menu: ® View ® Zoom All
Quick choice: F5
Description: It executes a zoom showing all the model on the screen.
Zoom Previous
Accessible: Toolbar
Menu: ® View ® Zoom Previous
Quick choice: Alt+p
Description: It goes to the previous view.
Then we have:
Node
Accessible: Menu: ® View ® Node
Fix Toolbar: Nodes
Description: It manages the nodes view.
There are two options:
Node: It shows or hides the nodes.
Number: It shows or hides the nodes number.
Element
Accessible: Menu: ® View ® Element
Fix Toolbar: Elements
Description: It manages the elements view.
There are three options:
Element: It shows or hides the elements.
Number: It shows or hides the elements number.
Attribute: It shows or hides the elements attributes as stress, shear, flux
Wireframe
Accessible: Menu: ® View ® Element
Fix Toolbar: Elements
Description: It shows only the elements outlines.
