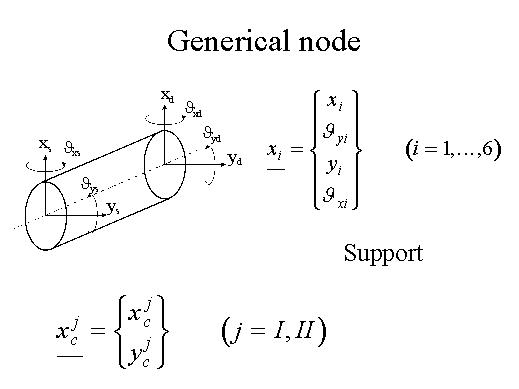

Since each element of the model is represented by beam elements, the left and right nodes of the element has each 4 d.o.f.. As an example, the vector of each node has in the order the following d.o.f.: vertical displacement, rotation in the vertical plane, horizontal displacement, rotation in the horizontal plane. As regards the foundation, the supporting structure d.o.f. vector has only the vertical and the horizontal modal component.

---
