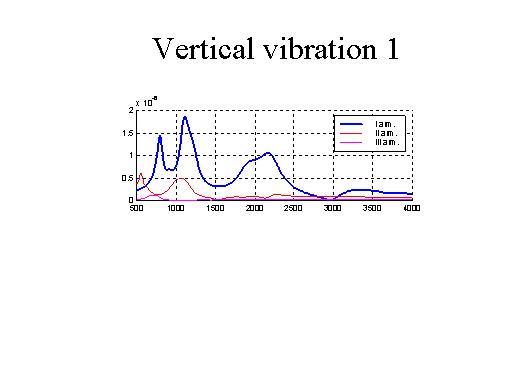

The next four figures are relative to the vertical vibrations in the bearings, starting from bearing 1. The amplitude would be greater if a node corresponding to the crack of the rotor was considered. However, the sensors of the diagnostics system on the machines are usually in the bearings, so it is convenient to consider the nodes corresponding to the bearings.

---
