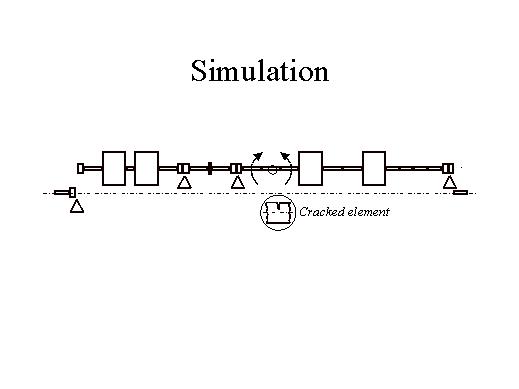

The simulation is performed by imposing a forcing system, on the model of the rotor, which represents the considered fault. In this case, the forcing system is represented by three harmonic components of the moment due to the crack. The three harmonic components, 1x rev., 2x rev. and 3x rev. are shown together both in amplitude and phase.

---
