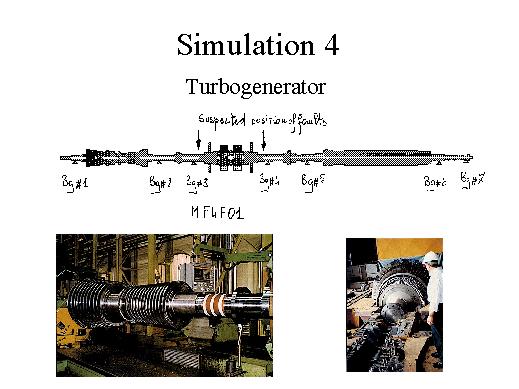

The figure shows a 2D finite element model of an actual turbogroup, with a high-intermediate pressure turbine, on two oil film bearings, rigidly coupled to the low pressure turbine, also on two oil film bearings, and a generator, on three oil-film bearings.

---
