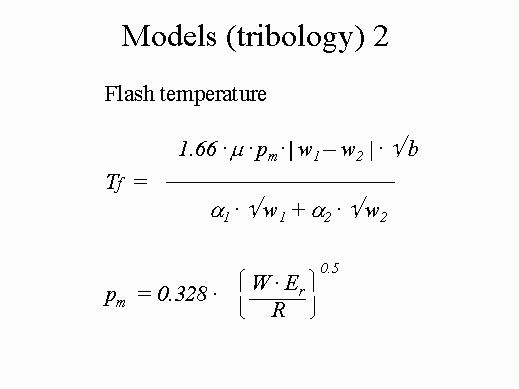

A very important performance index is flash temperature. Flash temperature
is proportional to
- µ which is the lubricant viscosity;
- pm which is the mean pressure
between the two surfaces, computed by means of the Hertz theory. pm
is computed here according to this formula in which Er
and R are the former parameters that have been used to compute
the height of the lubricant film in the previous figure;
- w1 and w2
are two speeds which refer to the relative speed of the contact point
with respect to the first surface, which is a cam surface, and the second
surface, which is the rocker surface. If I get an observer which is
linked to the cam, he sees the point of contact running with speed w1
on the cam, and if I take an observer linked to the rocker, he sees
the contact point running with velocity w2
over the surface of the rocket;
- b is the cross length of the contact surface;
- a1
and a2
are two heat exchange parameters, which refer respectively to the first
and the second surfaces.
|
|
